BALL TIP SURGICAL LASER FIBERS
Safe. Efficient. Effective – Designed for Precision in Prostate Surgery

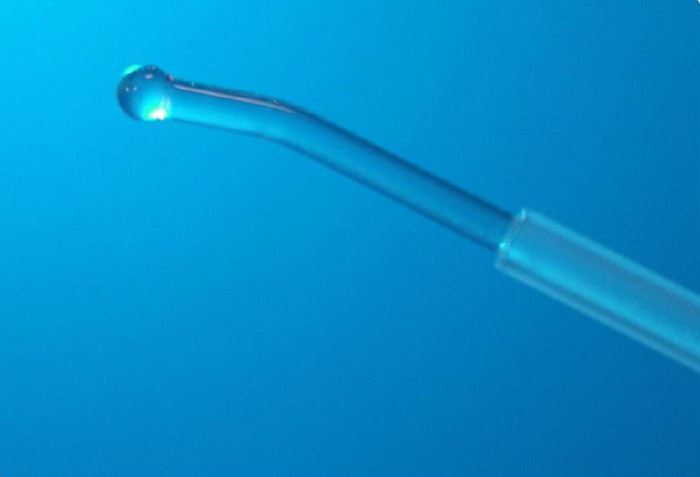

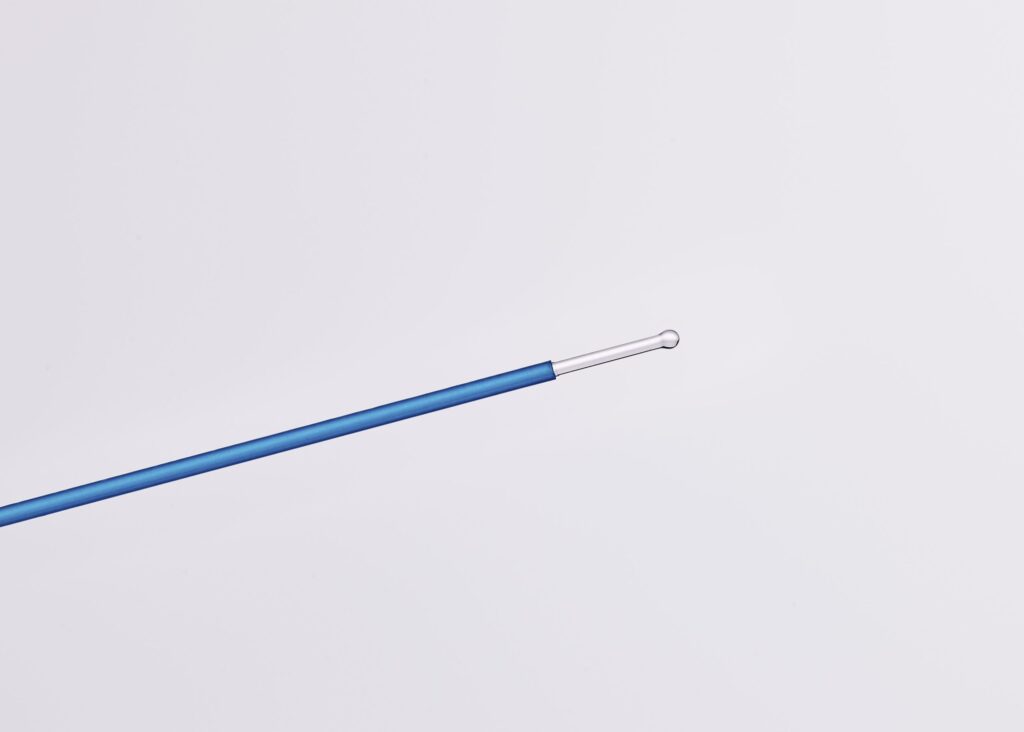

OVERVIEW OF BALL TIP FIBERS
Ball Tip Fibers are designed for smooth, safe laser delivery during prostate surgery and other delicate procedures. These curved-tip fibers provide better access, reduce trauma, and improve control using high-power laser systems across all wavelengths. This makes them ideal for minimally invasive laser treatments where precision matters most.
Whether in contact or non-contact mode, the unique 360° dome curvature enables unobstructed access to hard-to-reach areas like the upper end of the prostate while maintaining full control. This feature supports improved targeting compared to traditional straight-tip fibers used in urological laser surgery.
Built to mimic the effectiveness of TURP (transurethral resection of the prostate) techniques, the curved dome tip offers smooth gliding, reduced trauma, and can withstand over 450,000 joules of laser energy — making it a go-to fiber for high-precision laser prostate surgery. Our fibers comply with FDA-recognized medical laser standards, offering confidence in clinical safety and performance.
Contact us to request a sample or discuss OEM integration
Key Features OF BALL TIP FIBERS
360° unobstructed energy delivery for full-radius prostate treatment
Smooth, dome-shaped curved tip for safe and easy gliding on tissue
Minimized trauma and scope protection during high-energy use
Ergonomic tip design for total surgeon control
Handles >450,000 J of laser energy without degradation
Complies with FDA, ISO 13485:2016, and CE standards
Engineered and manufactured in the USA and Germany
BALL TIP FIBERS Available Models & Specs
| Model Code | Core / OD (µm) | Outer Diameter | Jacket Type | Connector | Use Type |
|---|---|---|---|---|---|
| MF 400/440 HCBT/SBT | 400 / 440 | 580 µm | Hard Clad / Silicone | High Power SMA 905 | Single-use |
| MF 550/600 HCBT/SBT | 550 / 600 | 750 µm | Hard Clad / Silicone | High Power SMA 905 | Single-use |
| MF 800/880 HCBT/SBT | 800 / 880 | 1180 µm | Hard Clad / Silicone | High Power SMA 905 | Single-use |
Optional White Nylon Jacket Models (Capillary Style) available upon request
Custom dimensions or labeling? Available within 7 business days
Downloadable Brochure
Applications of Ball tip Surgical Fibers
CERTIFICATIONS: FDA 510(K): K 124003 - ISO 13485:2016 - CE MARKING
