FLEXX TRAK™ LASER FIBERS
Designed to Flex. Engineered for Power. Made for Precision.

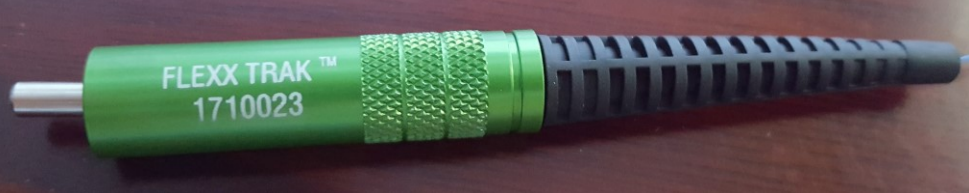

OVERVIEW OF FLEXX TRAK CONNECTOR
The FLEXX TRAK™ Tip Design sets a new standard in laser lithotripsy performance and safety. Built for both flexible and rigid ureteroscopes, FLEXX TRAK™ fibers offer unmatched navigation, heat-treated tips for smooth insertion, and zero energy leakage during deflection.
These laser fibers are trusted for high-power applications up to 50 watts and are designed to support minimally invasive urologic procedures, providing optimal clinical safety and scope preservation — all while maintaining full energy transmission, even through bends.
Contact us to request a sample or discuss OEM integration
KEY FEATURES OF FLEXX TRAK CONNECTOR
Heat-treated tip for smooth, one-step passage through flexed ureteroscopes
Special silicone coating prevents laser energy from leaking at bend radius
Minimizes risk of fiber breakage and scope damage
Available with SuperDry® and Absorbing Dark Hole® connectors
Compatible with all FDA-cleared Ho:YAG laser systems (excluding RFID-only)
Manufactured with tightest concentricity tolerances in the industry
Produced in our Arizona facility with German-engineered fiber tech
Custom-labeled and sterile, single-use delivery available in <7 days
FLEXX TRAK™ Standard Models & Specs
| Model Code | Core / OD (µm) | Outer Diameter | Jacket Type | Connector | Use Type |
|---|---|---|---|---|---|
| MF 272/300 | 272 / 300 | 450 µm | Silicone / Blue Tefzel | SuperDry® | Single-use |
| MF 230/276 * | 230 / 276 | 400 µm | Silicone / Blue Tefzel | SuperDry® | Single-use |
| MF 242/290 * | 242 / 290 | 450 µm | Silicone / Blue Tefzel | SuperDry® | Single-use |
* Available on special order only
- All models also available with numerical aperture (NA) 0.28 upon request
- Custom dimensions and labeling available
Connector Technology Options
- SuperDry® Connector: Offers centric alignment with no polishing films/liquids needed
Absorbing Dark Hole® Connector: For safe high-power delivery up to 50W procedures
Why Choose FLEXX TRAK™ Fibers
Reduces scope damage in tight deflection curves
Retains full laser energy even during high bending
Ideal for OEM integration, B2B supply, and surgical centers
Customizable solutions with quick turnaround
Downloadable Brochure
Applications OF FLEXX TRAK CONNECTOR
CERTIFICATIONS: FDA 510(K): K 124003 - ISO 13485:2016 - CE MARKING
Need a Custom Solution?
We’re here to help. Whether you’re interested in a custom fiber optic configuration, requesting a sample, or have specific technical questions — just fill out the form below.
We will respond within 1–2 business days.
