HHZ CONNECTOR SURGICAL LASER FIBERS™
High Hertz Precision. Built for Power. Designed for Safety.
OVERVIEW
The HHZ Connector Laser Fiber™ is specifically developed to meet the increasing demand for high-frequency Ho:YAG laser lithotripsy. Engineered to withstand up to 100 Hz (with tests in progress for 120 Hz+), these fibers ensure safe, effective, and reliable energy delivery during stone fragmentation or dusting.
With silicone buffer coating, tight concentric tolerances, and custom connector technology, the HHZ system prevents energy leakage even during extreme bending — protecting the fiber, scope, and patient.
Contact us to request a sample or discuss OEM integration
Key Features of hhz connector
The HHZ Connector is built to provide a robust and dependable interface for medical laser equipment. Its design helps maintain alignment, reduce connection loss, and support consistent laser output.
Withstands high-frequency laser use — tested up to 100 Hz
No energy leakage at bend radius — reduces breakage risk

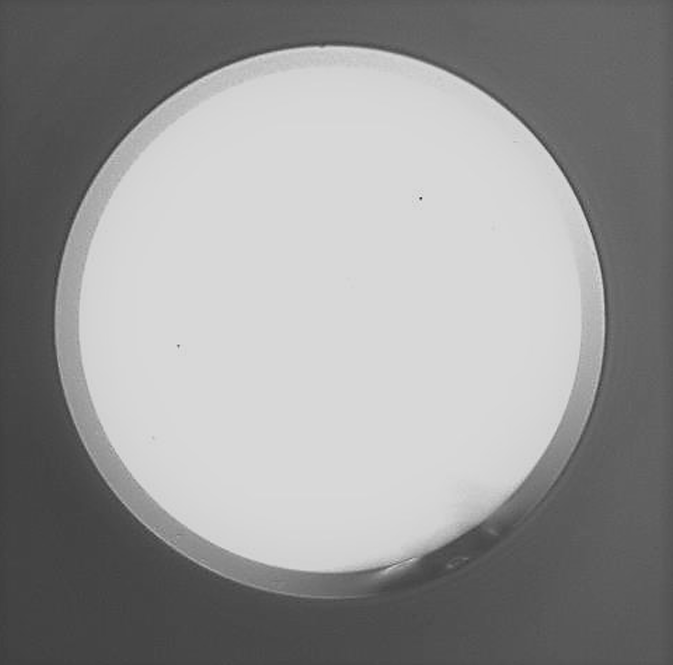

Centered fiber placement within connector for optimal energy transfer
Custom-designed parts absorb proximal energy and protect operator/scope
0% tolerance failure rate through rigorous laser testing
Available in single-use or reusable sterile versions
Made in the USA | German-engineered design
Standard Sizes Available in hhz connector
| Model Code | Core/OD (µm) | Outer Diameter | Jacket Type | NA | Use Type |
|---|---|---|---|---|---|
| MF 150/180 | 150 / 180 | 350 µm | Hard Clad / Tefzel | 0.22 | Single or Reusable |
| MF 200/240 | 200 / 240 | 400 µm | Silicone / Tefzel | 0.22 | Single or Reusable |
| MF 230/276 * | 230 / 276 | 400 µm | Silicone / Tefzel | 0.22 | Single or Reusable |
| MF 272/300 | 272 / 300 | 450 µm | Silicone / Tefzel | 0.22 | Single or Reusable |
| MF 365/400 | 365 / 400 | 580 µm | Silicone / Tefzel | 0.22 | Single or Reusable |
| MF 550/600 | 550 / 600 | 750 µm | Hard Clad / Tefzel | 0.22 | Single or Reusable |
| MF 1000/1100 | 1000 / 1100 | 1450 µm | Hard Clad / Tefzel | 0.22 | Single or Reusable |
Custom diameters and NA 0.28 also available upon request
Fast turnaround: sterilized and custom-labeled in <7 business days
WHY CHOOSE HHZ CONNECTOR FIBERS™
Perfect for high-Hz lithotripsy with top energy safety
Reduces risk of operator burns, device damage, and scope failure
Designed to handle extreme use with reusable or single-use formats
Fastest delivery and custom solutions available
Downloadable Brochure
Applications
CERTIFICATIONS: FDA 510(K): K 124003 - ISO 13485:2016 - CE MARKING
Custom dimensions or high-frequency needs? We’re ready to support you.
We’re here to help. Whether you’re interested in a custom fiber optic configuration, requesting a sample, or have specific technical questions — just fill out the form below.
We will respond within 1–2 business days.
