HOLMIUM EASY FLEX GLIDE FIBER™
Advanced Flexibility. Optimized Energy Delivery. Maximum Scope Protection.
OVERVIEW

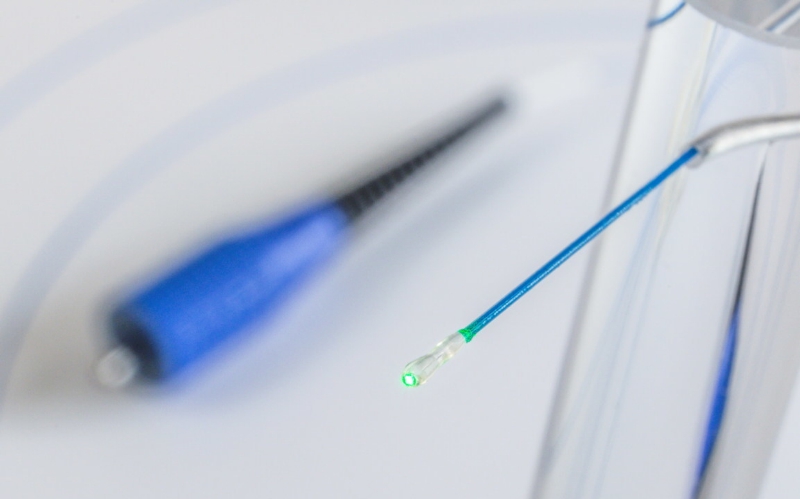

Holmium Easy Flex Fibers are used in advanced holmium laser procedures that require precision and control.The Holmium Easy Flex Glide Fiber™ is our next-generation atraumatic dome-tip laser fiber, engineered to deliver high energy transmission with minimal energy loss — even in the most complex anatomies.
Featuring a smooth, flexible silicone/Tefzel jacket, the fiber easily navigates sharp curves in digital ureteroscopes while protecting both scope and patient. Its dome tip design (not ball tip) ensures a collimated beam without internal reflection, enhancing treatment efficiency and safety.
With fire-polished fiber ends that eliminate micro-cracks, this fiber offers up to 200x more tip durability than traditional flat or ball tips.
Available is single use fibers:
- 200/240 blue jacket fiber, outer diameter 400 micron
- 272/300 blue jacket fiber, outer diameter 450 micron
- 365/400 blue jacket fiber, outer diameter 580 micron
- 550/605 blue jacket fiber, outer diameter 780 or 880 micron
- 600/660 blue jacket fiber, outer diameter 920 micron
- 800/880 blue jacket fiber, outer diameter 1180 micron
- 1000/1100 blue jacket fiber, outer diameter 1500 micron
Sterile fibers available in single use with SMA 905 connectors
- MF 200/240 SBT-EF, silicone / tefzel, blue jacket, n/a 0.22, 3 meters, outer diameter 400 microns, SMA 905 connector, single use, sterile
- MF 272/300 SBT-EF, silicone / tefzel, blue jacket, n/a 0.22, 3 meters, outer diameter 450 microns, SMA 905 connector, single use, sterile
- MF 365/400 SBT-EF, silicone / tefzel, blue jacket, n/a 0.22, 3 meters, outer diameter 580 microns, SMA 905 connector, single use, sterile
- MF 550/605 SBT-EF, silicone / tefzel, blue jacket, n/a 0.22, 3 meters, outer diameter 780 or 880 microns*, SMA 905 connector, single use, sterile
- MF 600/660 SBT-EF, silicone / tefzel, blue jacket, n/a 0.22, 3 meters, outer diameter 920 microns, SMA 905 connector, single use, sterile
- MF 800/880 SBT-EF, silicone / tefzel, blue jacket, n/a 0.22, 3 meters, outer diameter 1180 microns, SMA 905 connector, single use, sterile
- MF 1000/1100 SBT-EF, silicone / tefzel, blue jacket, n/a 0.22, 3 meters, outer diameter 1500 microns, SMA 905 connector, single use, sterile
Contact us to request a sample or discuss OEM integration
Key Features
- Atraumatic dome tip (not ball tip) for consistent collimated beam
Zero energy loss via inner reflection — unlike ball tips
200x stronger tip durability due to fire-polished edge melting
Enhanced scope protection during ureteroscopy
Smooth glide coating for low-friction advancement
Available in single-use sterile versions
SMA 905 connector standard, optional OD specification
Product Variants & Specs
| Model Code | Core/OD (µm) | Jacket / Material | OD (µm) | Length | Connector | Use Type |
|---|---|---|---|---|---|---|
| MF 200/240 SBT-EF | 200 / 240 | Silicone / Tefzel | 400 | 3 m | SMA 905 | Single-use |
| MF 272/300 SBT-EF | 272 / 300 | Silicone / Tefzel | 450 | 3 m | SMA 905 | Single-use |
| MF 365/400 SBT-EF | 365 / 400 | Silicone / Tefzel | 580 | 3 m | SMA 905 | Single-use |
| MF 550/605 SBT-EF | 550 / 605 | Silicone / Tefzel | 780 or 880* | 3 m | SMA 905 | Single-use |
| MF 600/660 SBT-EF | 600 / 660 | Silicone / Tefzel | 920 | 3 m | SMA 905 | Single-use |
| MF 800/880 SBT-EF | 800 / 880 | Silicone / Tefzel | 1180 | 3 m | SMA 905 | Single-use |
| MF 1000/1100 SBT-EF | 1000 / 1100 | Silicone / Tefzel | 1500 | 3 m | SMA 905 | Single-use |
Fire-polished ends for increased lifespan
100% laser-tested for output accuracy and safety
Downloadable Brochure
Applications
CERTIFICATIONS: FDA 510(K): K 124003 - ISO 13485:2016 - CE MARKING
