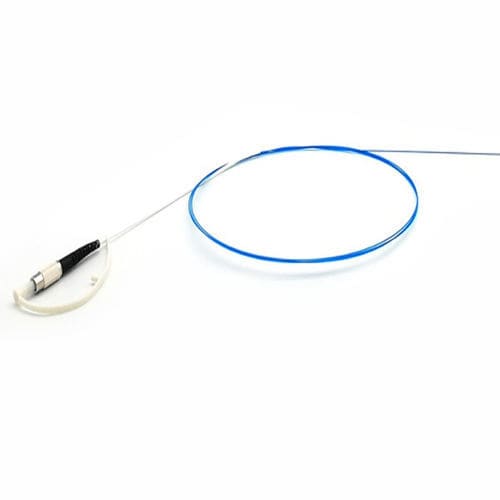

THULIUM LASER FIBERS
Safe. Efficient. Effective — Engineered for Precision.
THULIUM LASER FIBERS OVERVIEW
The Thulium Surgical Laser Fibers are designed to deliver unmatched control, precision, and safety across a range of soft tissue applications. Thulium Fiber Lasers (TFL) operate at higher pulse frequencies — up to 2400 Hz — and emit low-energy, high-frequency pulses, resulting in superior stone dusting and minimized tissue trauma compared to traditional Ho:YAG systems.
Learn more about Thulium Fiber Laser technology on PubMed or review the FDA’s laser classification guidelines.
These fibers are ideal for procedures requiring fine ablation, enhanced coagulation, and hemostasis, and are available in single-use or reusable, sterile configurations.
AUA Guidelines also support the use of thulium and holmium lasers for urological applications.
These fibers are ideal for procedures requiring fine ablation, enhanced coagulation, and hemostasis, and are available in single-use or reusable, sterile configurations.

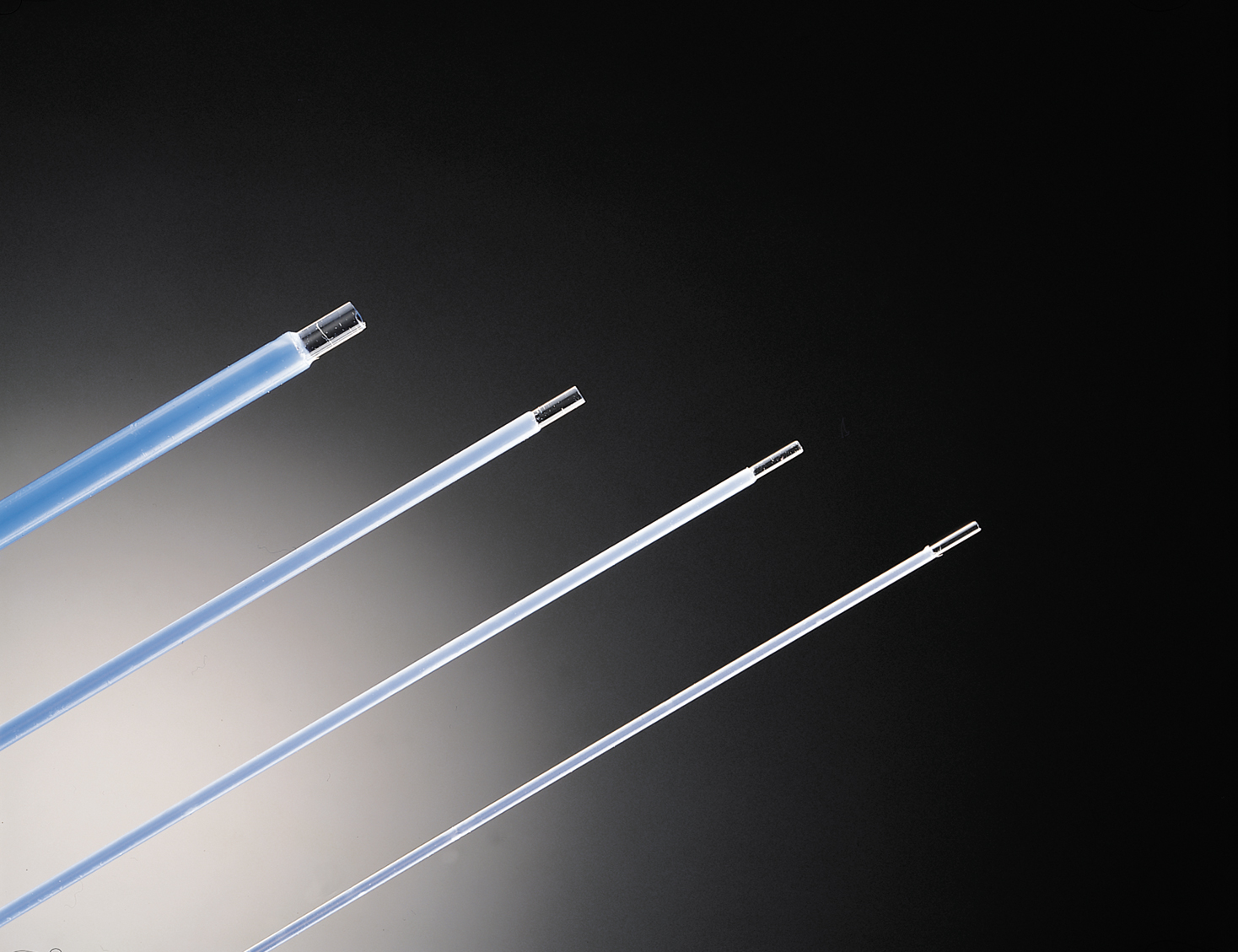

Available is single use and reusable fibers:
- 150/180, blue jacket fiber, outer diameter 350 micron
- 272/300, blue jacket fiber, outer diameter 450 micron
- 365/400, blue jacket fiber, outer diameter 580 micron
- 550/600, blue jacket fiber, outer diameter 750 micron
- 600/660, blue jacket fiber, outer diameter 920 micron
- 800/880, blue jacket fiber, outer diameter 1180 micron
- 1000/1100, blue jacket fiber, outer diameter 1450 micron
Contact us to request a sample or discuss OEM integration
Key Features OF THULIUM LASER FIBERS
Optimized for Thulium Laser Fibers (~1940 nm)
Supports up to 2400 Hz frequency for high-speed lithotripsy
Enables quasi-continuous and super-pulsed modes for soft tissue work
Superior hemostasis and coagulation in urological procedures
Compatible with all FDA-approved laser systems (except RFID-only)
Blue jacketed, biocompatible fibers with tight concentricity tolerances
Available in multiple core sizes with SMA 905 connectors
Manufactured in the USA, engineered in Germany
surgical thulium fibers Product Variants & Technical Specs
| Model Code | Core/OD (µm) | Jacket & Cladding | OD (µm) | NA | Length | Connector | Use Type |
|---|---|---|---|---|---|---|---|
| MF 150/180 SBT | 150 / 180 | Hard Clad / Tefzel | 350 | 0.22 | 3 m | SMA 905 | Single / Reusable |
| MF 272/300 SBT | 272 / 300 | Silicone / Tefzel | 450 | 0.22 | 3 m | SMA 905 | Single / Reusable |
| MF 365/400 SBT | 365 / 400 | Silicone / Tefzel | 580 | 0.22 | 3 m | SMA 905 | Single / Reusable |
| MF 550/600 HCT | 550 / 600 | Hard Clad / Tefzel | 750 | 0.22 | 3 m | SMA 905 | Single / Reusable |
| MF 600/660 SBT | 600 / 660 | Silicone / Tefzel | 920 | 0.22 | 3 m | SMA 905 | Single / Reusable |
| MF 800/880 SBT | 800 / 880 | Silicone / Tefzel | 1180 | 0.22 | 3 m | SMA 905 | Single / Reusable |
| MF 1000/1100 HCT | 1000 / 1100 | Hard Clad / Tefzel | 1450 | 0.22 | 3 m | SMA 905 | Single / Reusable |
Sterile, 100% laser-tested before delivery
Downloadable Brochure
Applications of Surgical Thulium Laser Fibers
CERTIFICATIONS: FDA 510(K): K 124003 - ISO 13485:2016 - CE MARKING
